- Size: 4000×1200×1750mm
- Place of Origin: Jinan shandong

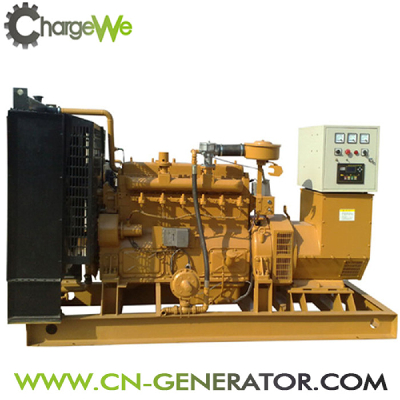

- Brand Name: CHARGEWE
- Model Number: CW-80GFT
- Weight: 2300.000 kg
Genset No. | CW-80GFT |
Engine No. | CW6135 |
Type | outside |
Rated power | 80kw |
Rated voltage | 400V/230V |
Phase | 3P4W |
Rated Frequency | 50Hz |
Rated speed | 1500r/min |
Rated power factor | 0.8 |
Rated current | 144A |
Heat consumption | ≤ 11.5mj/kw.h |
Pressure | 80-200kpa |
Cylinder No. | 6 |
Cylinder diameter | 135mm |
Stroke | 150mm |
Compression ratio | 10:1 |
Intake mode | Natural intake |
Sparking mode | Spark plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electric speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Circulating water cooled |
Start mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105 |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 10.4L |
Size | 4000 × 1200 × 1750 |
Weight | 2300kg |
