- Size: 2750×900×1700mm
- Place of Origin: Jinan ,Shandong
- Brand Name: CHARGEWE
- Model Number: CW-100GFJ
- Weight: 2200.000 kg
Requirement for biomass gas
Within 1m to the intake valve of gas generator set
1. Generator temperature≤40 ℃
2.Pressure 3-10kpa ,pressure changing rate ≤ 1kpa/min
3.H 2 S ≤ 200mg/Nm 3
4.NH 3 ≤ 20 mg/Nm 3
5.Tar content ≤ 20 mg/Nm 3
6.Impurity particle size ≤ 5um .impurity content ≤ 30 mg/Nm 3
7.Moisture content ≤ 40 g/Nm 3
8.Heat value ≥ 4.2mj/Nm3

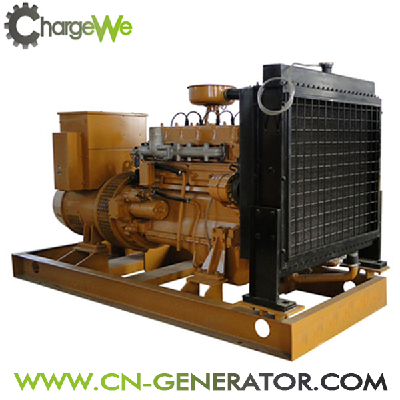

Genset mode | CW-100GFJ |
Engine No. | CW6135 |
Gas mix type | outside |
Rated power | 100kw |
Rated voltage | 400v/230v |
Phase | 3phase4wire |
Rated frequency | 50Hz |
Rated rotation | 1500r/min |
Rated power factor | 0.8 |
Rated current | 180A |
Heat consumption | ≤ 11.5mj/kw.h |
Gas power | 3-20kpa |
Cylinder No. | 6 |
Cylinder diameter | 135mm |
Stroke | 150mm |
Compression ratio | 10:1 |
Intake mode | Natural intake |
Sparking mode | Sparking plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electronic speed regulate |
Lubricating mode | Pressure and splash |
Cooled mode | Open/closed cooled |
Starting mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105 |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 10.4L |
Size(mm) | 4000*1200*1750 |
Weight | 2300kg |
