- Size: 2200×850×1300
- Place of Origin: Jinan, Shandong
- Brand Name: CHARGEWE
- Model Number: CW-20GFT
- Weight: 900.000 kg
Requirements for Nature gas
Within 1m from pressure regulating valve of gas intake .
1. The ratio of CH4 in nature gas ≥70%
2. Pressure of nature gas :80~200kpa ,rate of pressure change ≤1kpa/min .
3. H2S≤20mg/Nm3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤5um,impurity content≤30mg/Nm³

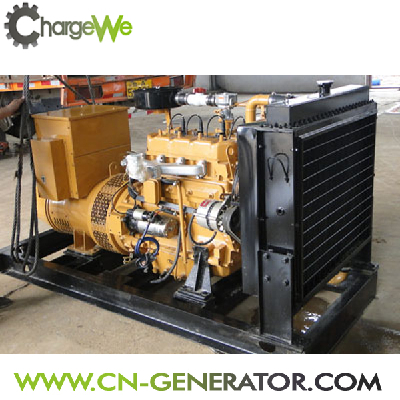

Genset No. | CW-20GFT |
Engine No. | CW4105 |
Type | outside |
Rated power | 20kw |
Rated voltage | 400V/230V |
Phase | 3P4W |
Rated Frequency | 50Hz |
Rated speed | 1500r/min |
Rated power factor | 0.8 |
Rated current | 36A |
Heat consumption | ≤ 11.5mj/kw.h |
Pressure | 8-200kpa |
Cylinder No. | 4 |
Cylinder diameter | 105mm |
Stroke | 125mm |
Compression ratio | 11:1 |
Intake mode | Natural intake |
Sparking mode | Spark plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electric speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Circulating water cooled |
Start mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105dB(A) |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 2.8L |
Size | 2200 × 850 × 1300 |
Weight | 900kg |
