- Size: 6000×1970×2235mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFZ
- Weight: 4000.000 kg

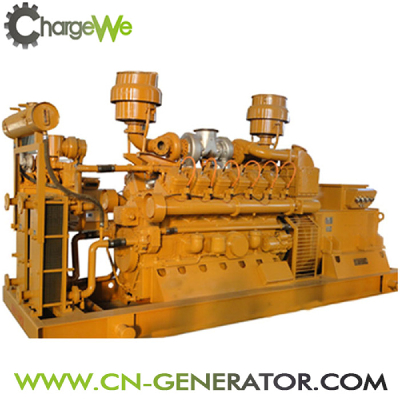

Biogas generator sets application
1.Breeding enterprise-biogas generator power
2.Industry- clcohol plant ,starch factory anaerobic sewage treatment
3.refuse landfill-sewage biogas generator power
Requir e ments for biogas genset
Within 1m from pressure valve of gas intake
1.Gas temperature≤40 ℃
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H 2 S≤200mg/Nm 3
4.NH 3 ≥20mg/Nm 3
5.CH 4 content≥40%,changing rate≤30mg/Nm 3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm 3
CW-500GFZ | |
Engine No. | 12V190ZLDT-2 |
Gas mix type | outside |
Rated power | 500kw |
Continuous Power | 400kw |
Rated voltage | 400V/230V |
phase | 3p4w |
Rated frequency | 50Hz |
Rated rotation | 1000r/min |
Rated power factor | 0.8 |
Rated current | 902A |
Frequency volatility rate | ≤ 0.5 % |
Voltage regulating range | 95-105 % |
Heat consumption | ≤ 11.5mj/kw.h |
Lubricant consumption | ≤ 1.5g/kw.h |
pressure | 3-20kpa |
Cylinder number | 12-V |
Cylinder diameter | 190mm |
stroke | 210mm |
Compression ratio | 8:1 |
Starting mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105dB(A) |
Intake mode | Supercharging, inter cooler |
Sparking mode | Spark plug |
Voltage regulation mode | automatic |
Speed regulation mode | electronic speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Circulating water cooling |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 71.45L |
Genset dimensions | 6000 × 1970 × 2735 |
FAQ:
1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour. 1.0 Cubic meter gas can produce 1.5-3.0kw/h
power. The capacity depends on gas energy. E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare
parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed
anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
