- Size: 5980×1970×2235mm
- Place of Origin: Jinan ,Shandong
- Brand Name: CHARGEWE

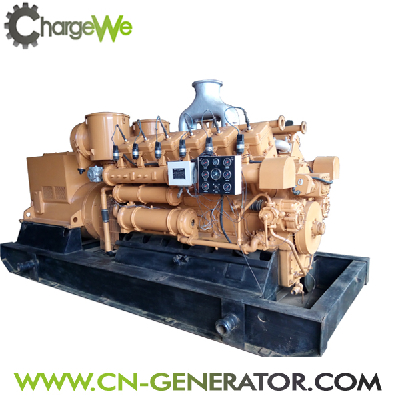

- Model Number: CW-400GFJ
- Weight: 11000.000 kg
Requirement for biomass gas
Within 1m to the intake valve of gas generator set
1. Generator temperature≤40 ℃
2.Pressure 3-10kpa ,pressure changing rate ≤ 1kpa/min
3.H 2 S ≤ 200mg/Nm 3
4.NH 3 ≤ 20 mg/Nm 3
5.Tar content ≤ 20 mg/Nm 3
6.Impurity particle size ≤ 5um .impurity content ≤ 30 mg/Nm 3
7.Moisture content ≤ 40 g/Nm 3
8.Heat value ≥ 4.2mj/Nm3
Genset No. | CW-400GFJ |
Engine No. | 12V190DT-2 |
Gas mix type | outside |
Rated power | 400kw |
Continuous power | 320kw |
Rated voltage | 400V/230V |
Phase | 3phase4wire |
Rated frequency | 50Hz |
Rated rotation | 1000r/min |
Rated power factor | 0.8 |
Rated current | 720A |
Frequency steady state regulation rate | ≤ 0.5 ％ |
Voltage regulating range | 95-105 ％ |
Heat consumption | ≤ 11.5mj/kw.h |
Lubricant consumption | ≤ 1.5g/kw.h |
Gas pressure | 3-20kpa |
Cylinder number | 12v |
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 9:1 |
Starting mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105dB(a) |
Intake mode | Natural intake |
Sparking mode | Sparking plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electric speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Closed/open cooled |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 71.45L |
Size (mm) | 6000*1970*2235 |
