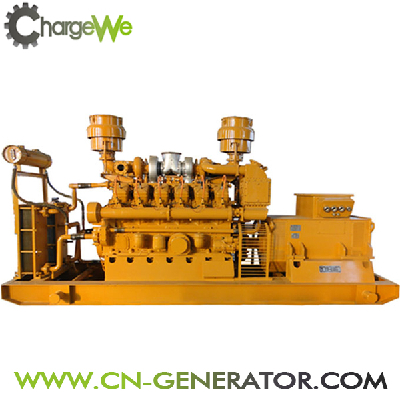

500kw natural gas generator

500kw natural gas generator

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-06-28
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  6000×1970×2735mm
  • Place of Origin:  Qingdao
  • Brand Name:  CHARGEWE
  • Model Number:  CW-500GFT
  • Weight: 12000.000 kg

Requirements for Nature gas

Within 1m from pressure regulating valve of gas intake .

1. The ratio of CH4 in nature gas ≥70%

2. Pressure of nature gas :80~200kpa ,rate of pressure change ≤1kpa/min .

3. H2S≤20mg/Nm3

4. Moisture content ≤ 40g/Nm3

5. Impurity particle size ≤5um,impurity content≤30mg/Nm³

Genset No.

CW-500GFT

Engine No.

12V190ZLDT-2

Type

outside

Rated power

500kw

Prime power

400kw

Rated voltage

400V/230V

Phase

3P4W

Rated frequency

50Hz

Rated speed

1000r/min

Rated power factor

0.8

Rated current

902A

Frequency volatility rate

0.5

Voltage regulation range

95-105

Heat consumption

11.5mj/kw.h

Lubricant consumption

1.5g/kw.h

Gas Pressure

80-200kpa

Cylinder No.

12-V

Cylinder diameter

190mm

Stroke

210mm

Compression ratio

8:1

Start mode

24V electric motor

Overhaul

25000h

Noise

105dB(A)

Intake mode

Supercharging, inter cooled

Sparking mode

Spark plug

Voltage regulation mode

automatic

Speed regulation mode

Electronic speed regulation

Lubrication mode

Pressure and splash

Cooled mode

Circulating water cooled

Exhaust temperature

650

Displacement

71.45L

Size

6000 × 1970 × 2735


  • Size:  6000×1970×2735mm
  • Place of Origin:  Qingdao
  • Brand Name:  CHARGEWE
  • Model Number:  CW-500GFT
  • Weight: 12000.000 kg
