- Size: 6000×1970×2735mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFJ
- Weight: 11500.000 kg

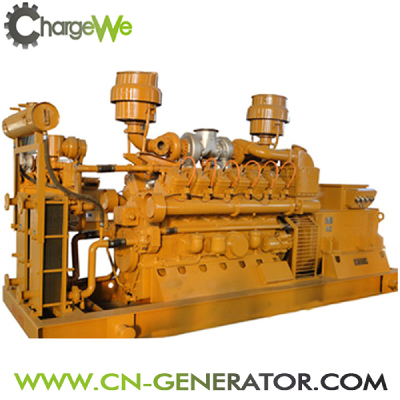

Biomass generator set
Gas component
Biomass exists in various of forms , like wood crop(straws of rice ,wheat ,bean ,cotton ,husk etc.) weeds ,algae etc ,in the plants ,others like animal wastes, spoil and the organic exist in waste water and rubbish etc.
Now , there are mainly three ways to generate power with biomass : gasify generating, burning generating ,CHP technology , in China we are rich in the resources of biomass , but lack in the power supply . So our country can supply a vast stage to show the advantage and economy to generate power with biomass .
Genset No. | CW-500GFJ |
Engine No. | 12V190ZLDT-2 |
Gas mix type | outside |
Rated power | 500kw |
Continuous power | 400kw |
Rated voltage | 400V/230V |
Phase | 3phase4wire |
Rated frequency | 50Hz |
Rated rotation | 1000r/min |
Rated power factor | 0.8 |
Rated current | 902A |
Frequency steady state regulation rate | ≤ 0.5 % |
Voltage regulating range | 95-105 % |
Heat consumption | ≤ 11.5mj/kw.h |
Lubricant consumption | ≤ 1.5g/kw.h |
Gas pressure | 3-20kpa |
Cylinder number | 12v |
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 8:1 |
Starting mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105 |
Intake mode | Supercharging,inter- cooled |
Sparking mode | Sparking plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electric speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Closed/open cooled |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 71.45L |
Size (mm) |
- Size: 6000×1970×2735mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFJ
- Weight: 11500.000 kg
