- Size: 6150*1820*2700mm
- Place of Origin: Jinan Shandong
- Brand Name: CHARGEWE
- Model Number: CW-1000GF diesel genset
- Weight: 125000.000 kg

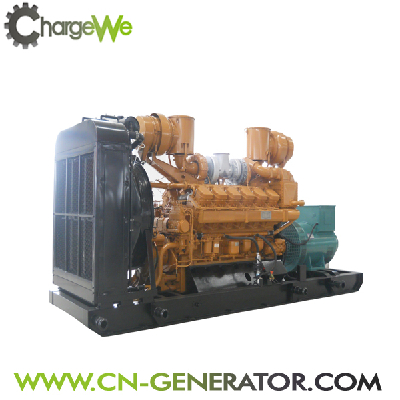

AC THREE PHASE OUTPUT TYPE 1000KW DIESEL GENERATOR
190series diesel generator set
190 series diesel generator set is a kind of high speed and powerful diesel engine with good quality and wide usage. With continuous improvement and adoption of the technology result of modern internal-combustion engine, this engine possesses characters of advanced technique、 economical data、compact in structure、speedy start、easy to operate、convenient maintenance and suitable to work in harsh environment etc.
190 series genset, its motive power is 190 series engine, it is a kind of genset with high quality and high efficiency. The power ranges from 400kw to 1000kw, and can be built into a power station with two or more than two gensets.
TECHNICAL PARAMETER OF 1MW DIESEL GENSET Genset mode CW-1000GF Engine No. G12V190ZL1 Rated power 1000kw Continuous power 800kw Rated voltage 400v/230v Phase 3phase4wire Rated frequency 50Hz Rated rotation 1500r/min Rated power factor 0.8 Rated current 1800A Cylinder number 12-V Cylinder diameter 190mm Stroke 210mm Compression ratio 14:1 Oil consumption (Full load) ≤ 209.4g Lubricant oil consumption (g/kw.h) ≤ 1.6g Starting mode 24V electric motor Control mode Long-distance control /manual control Intake mode Direct injection ,turbine charger Lubricating mode Pressure and splashing lubricating Discharge temperature (before turbine) ≤ 600 ℃ Temperature of Outlet water ≤ 85 ℃ Oil temperature (in the oil pan) ≤ 90 ℃ Oil pressure of Man oil Gellery 392-784kpa Displacement 71.45L Genset size 6150*1820*2700mm Weight 12500kg
SUCCESSFUL CASE OF 1MW DIESEL GENSET
CE/ISO
