- Size: 6000×1900×2170mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-200GFT
- Weight: 4000.000 kg

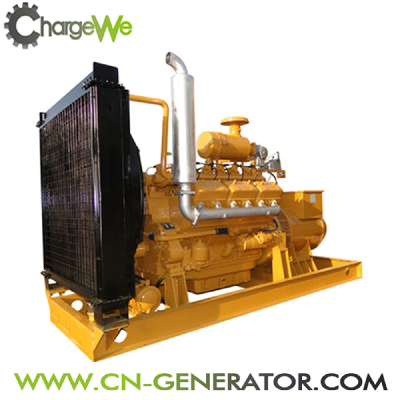

Nature gas generator set
Nature gas --- Its main component is HC 4, which takes 90% of the whole content .The displacement. The displacement of NO x , CH m and Co from burning are much lower than the state standards and without dust pollution; thermal efficiency of conversion is 65%, which is same to the LPG and high than coal ; calculated on the same calorific value ,the price of nature gas is lower than the price of coal and petroleum. Nature gas is used by civil use, generation, industrial chemicals and industrial fuel etc. It ’ s a good substitute of coal and petroleum. It can instead of civil coal gas, it can be used as nitrogenous fertilizer instead of coal and petroleum; it can be used as ethylene instead of Naphtha; It can be used as the car engine fuel instead of petroleum.
Requirements for Nature gas
With in 1m from pressure regulating valve of gas intake .
1. The ratio of CH 4 in nature gas ≥ 70%
2. Pressure of nature gas :80~200kpa ,rate of pressure change ≤ 1kpa/min .
3. H 2 S ≤ 20mg/Nm 3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5um ,impurity content ≤ 30mg/Nm ³
Genset No. | CW-200GFT |
Engine No. | CW12V135 |
Type | outside |
Rated power | 200kw |
Rated voltage | 400V/230V |
Phase | 3P4W |
Rated Frequency | 50Hz |
Rated speed | 1000r/min |
Rated power factor | 0.8 |
Rated current | 360A |
Heat consumption | ≤ 11.5mj/kw.h |
Pressure | 80-200kpa |
Cylinder No. | 12 |
Cylinder diameter | 135mm |
Stroke | 150mm |
Compression ratio | 10:1 |
Intake mode | Natural intake |
Sparking mode | Spark plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electric speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Circulating water cooled |
Start mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105 |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 25.4L |
Size | 6000 × 1900 × 2170 |
Weight | 4000kg |
- Size: 6000×1900×2170mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-200GFT
- Weight: 4000.000 kg
