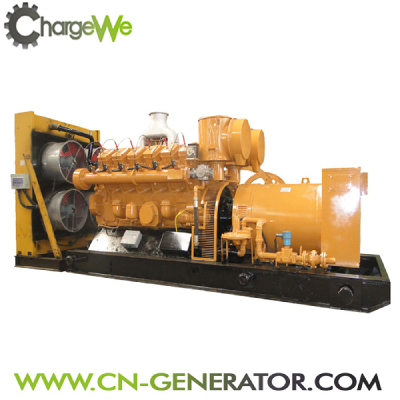

- Size: 6000×1970×2235mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-400GFZ
- Weight: 4000.000 kg
Biogas generator sets application
1.Breeding enterprise-biogas generator power
2.Industry- clcohol plant ,starch factory anaerobic sewage treatment
3.refuse landfill-sewage biogas generator power
Requir e ments for biogas genset
Within 1m from pressure valve of gas intake
1.Gas temperature≤40 ℃
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H 2 S≤200mg/Nm 3
4.NH 3 ≥20mg/Nm 3
5.CH 4 content≥40%,changing rate≤30mg/Nm 3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm 3
Model No. | CW-400GFZ |
Engine No. | 12V190DT-2 |
Gas mix type | outside |
Rated power | 400kw |
Continuous Power | 320kw |
Rated voltage | 400V/230V |
phase | 3p4w |
Rated frequency | 50Hz |
Rated rotation | 1000r/min |
Rated power factor | 0.8 |
Rated current | 720A |
Frequency volatility rate | ≤ 0.5 % |
Voltage regulating range | 95-105 % |
Heat consumption | ≤ 11.5mj/kw.h |
Lubricant consumption | ≤ 1.5g/kw.h |
pressure | 3-20kpa |
Cylinder number | 12-V |
Cylinder diameter | 190mm |
stroke | 210mm |
Compression ratio | 9:1 |
Starting mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105dB(A) |
Intake mode | Natural intake |
Sparking mode | Spark plug |
Voltage regulation mode | automatic |
Speed regulation mode | electronic speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Circulating water cooling |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 71.45L |
Genset dimensions | 6000 × 1970 × 2235 |
