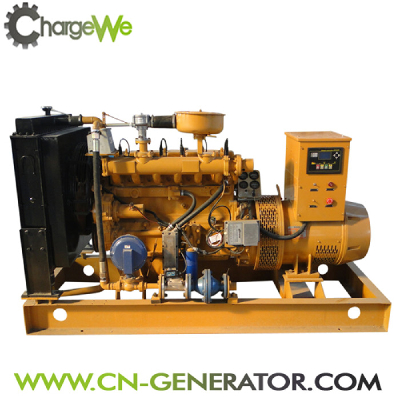

AC Three Phase Output Type 40kw gas generator

AC Three Phase Output Type 40kw gas generator

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-06-28
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  2300×850×1350mm
  • Place of Origin:  Jinan shandong
  • Brand Name:  CHARGEWE
  • Model Number:  CW-40GFT
  • Weight: 1200.000 kg

Nature gas --- Its main component is HC 4, which takes 90% of the whole content .The displacement. The displacement of NO x , CH m and Co from burning are much lower than the state standards and without dust pollution; thermal efficiency of conversion is 65%, which is same to the LPG and high than coal ; calculated on the same calorific value ,the price of nature gas is lower than the price of coal and petroleum. Nature gas is used by civil use, generation, industrial chemicals and industrial fuel etc. It s a good substitute of coal and petroleum. It can instead of civil coal gas, it can be used as nitrogenous fertilizer instead of coal and petroleum; it can be used as ethylene instead of Naphtha; It can be used as the car engine fuel instead of petroleum.

REQUIREMENTS FOR NATURE GAS

With in 1m from pressure regulating valve of gas intake .

1. The ratio of CH 4 in nature gas 70%

2. Pressure of nature gas :80~200kpa ,rate of pressure change 1kpa/min .

3. H 2 S 20mg/Nm 3

4. Moisture content 40g/Nm3

5. Impurity particle size 5um ,impurity content 30mg/Nm ³

TECHNICAL PARAMETER OF GAS GENERATOR

Genset No.

CW-40GFT

Engine No.

CW6105

Type

outside

Rated power

40kw

Rated voltage

400V/230V

Phase

3P4W

Rated Frequency

50Hz

Rated speed

1500r/min

Rated power factor

0.8

Rated current

72A

Heat consumption

11.5mj/kw.h

Pressure

80-200kpa

Cylinder No.

6

Cylinder diameter

105mm

Stroke

125mm

Compression ratio

11:1

Intake mode

Natural intake

Sparking mode

Spark plug

Voltage regulation mode

automatic

Speed regulation mode

Electric speed regulate

Lubrication mode

Pressure and splash

Cooling mode

Circulating water cooled

Start mode

24V electric motor

Overhaul time

25000h

Noise

105

Exhaust temperature

650

Displacement

5.2L

Size

2300 × 850 × 1350

Weight

1200kg




  • Size:  2300×850×1350mm
  • Place of Origin:  Jinan shandong
  • Brand Name:  CHARGEWE
  • Model Number:  CW-40GFT
  • Weight: 1200.000 kg
