- Size: 6000×1970×2735mm
- Place of Origin: Jinan Shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFT Natural gas generator
- Weight: 12000.000 kg
CW-500GFT NATURAL GAS GENSET
REQUIREMENTS FOR NATURAL GAS
Within 1m from pressure regulating valve of gas intake .
1. The ratio of CH4 in nature gas ≥ 70%
2. Pressure of nature gas :80~200kpa ,rate of pressure change ≤ 1kpa/min .
3. H2S ≤ 20mg/Nm 3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5um ,impurity content≤ 30mg/Nm ³
TECHNICAL PARAMETER OF 500KW NATURAL GAS GENERATOR
Genset No. CW-500GFT Engine No. 12V190ZLDT-2 Type outside Rated power 500kw Prime power 400kw Rated voltage 400V/230V Phase 3P4W Rated frequency 50Hz Rated speed 1000r/min Rated power factor 0.8 Rated current 902A Frequency volatility rate ≤ 0.5 ％ Voltage regulation range 95-105 ％ Heat consumption ≤ 11.5mj/kw.h Lubricant consumption ≤ 1.5g/kw.h Gas Pressure 80-200kpa Cylinder No. 12-V Cylinder diameter 190mm Stroke 210mm Compression ratio 8:1 Start mode 24V electric motor Overhaul ≥ 25000h Noise ≤ 105dB(A) Intake mode Supercharging, inter cooled Sparking mode Spark plug Voltage regulation mode automatic Speed regulation mode Electronic speed regulation Lubrication mode Pressure and splash Cooled mode Circulating water cooled Exhaust temperature ≤ 650 ℃ Displacement 71.45L Size 6000 × 1970 × 2735

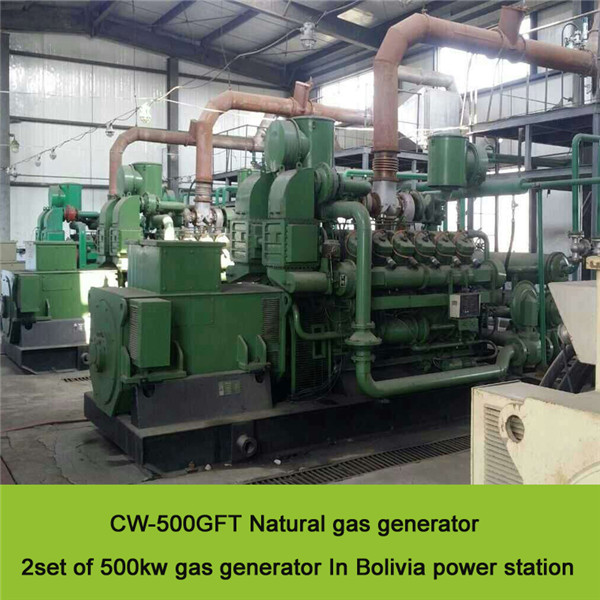

SUCCESSFUL CASE OF GAS GENERATOR

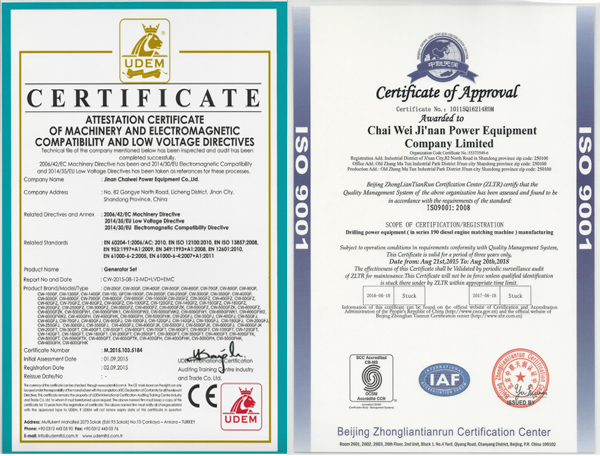

CE/ISO
