- Size: 6000×1970×2735mm
- Place of Origin: Jinan Shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFZ Biogas Generator
- Weight: 12000.000 kg

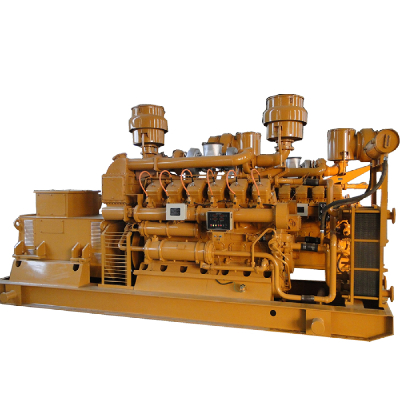

CW-500GFT BIOGAS GENERATOR
REQUIREMENTS FOR BIOGAS
Within 1m from pressure valve of gas intake
1.Gas temperature≤40℃
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H2S≤200mg/Nm3
4.NH3≥20mg/Nm3
5.CH4 content≥40%,changing rate≤30mg/Nm3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm3
TECHNICAL PARAMETER OF 500KW BIOGAS GENERATOR
Model No. CW-500GFZ Engine No. 12V190ZLDT-2 Gas mix type outside Rated power 500kw Continuous Power 400kw Rated voltage 400V/230V phase 3p4w Rated frequency 50Hz Rated rotation 1000r/min Rated power factor 0.8 Rated current 902A Frequency volatility rate ≤ 0.5 ％ Voltage regulating range 95-105 ％ Heat consumption ≤ 11.5mj/kw.h Lubricant consumption ≤ 1.5g/kw.h pressure 3-20kpa Cylinder number 12-V Cylinder diameter 190mm stroke 210mm Compression ratio 8:1 Starting mode 24V electric motor Overhaul time ≥ 25000h Noise ≤ 105dB(A) Intake mode Supercharging, inter cooler Sparking mode Spark plug Voltage regulation mode automatic Speed regulation mode electronic speed regulate Lubrication mode Pressure and splash Cooling mode Circulating water cooling Exhaust temperature ≤ 650 ℃ Displacement 71.45L Genset dimensions 6000 × 1970 × 2735

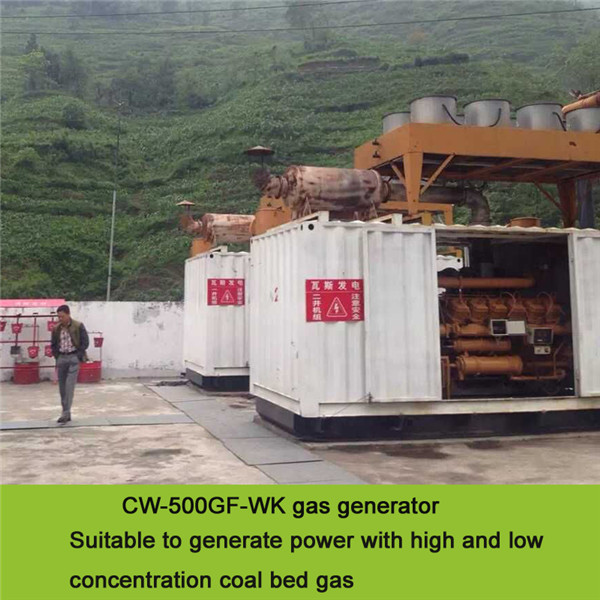

SUCCESSFUL CASE OF GAS GENERATOR
CE/ISO
