- Size: 6150*1820*2700mm
- Place of Origin: Jinan Shandong
- Brand Name: CHARGEWE
- Model Number: CW-700GF diesel genset
- Weight: 12500.000 kg

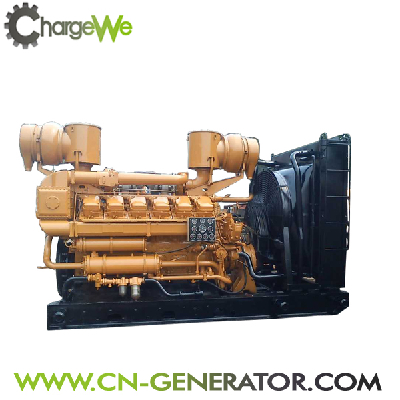

700KW DIESEL GENERATOR
TECHNICAL PARAMETER OF DIESEL GENSET
G enset mode CW-700GF Engine No. Z12V190B-1 Rated power 700kw Continuous power 560kw Rated voltage 400v/230v Phase 3phase4wire Rated frequency 50Hz Rated rotation 1500r/min Rated power factor 0.8 Rated current 1260A Cylinder number 12-V Cylinder diameter 190m m Stroke 210mm Compression ratio 14:1 Oil consumption (Full load) ≤ 209.4g Lubricant oil consumption (g/kw.h) ≤ 1.6g Starting mode 24V electric motor Control mode Long-distance control /manual control Intake mode Direct injec tion ,turbine charger Lubricating mode Pressure and splashing lubricating Discharge temperature (before turbine) ≤ 600 ℃ Temperature of Outlet water ≤ 85 ℃ Oil temperature (in the oil pan) ≤ 90 ℃ Oil pressure of Man oil Gellery 392-784kpa Displacement 71.45L Genset size 6150*1820*2700mm Weight 12500kg
SUCCESSFUL CASE OF DIESEL GENERATOR
CE/ISO
- Size: 6150*1820*2700mm
- Place of Origin: Jinan Shandong
- Brand Name: CHARGEWE
- Model Number: CW-700GF diesel genset
- Weight: 12500.000 kg
