- Size: 6000×1970×2235mm
- Place of Origin: Qingdao
- Brand Name: CHARGEWE
- Model Number: CW-400GFZ
- Weight: 11000.000 kg

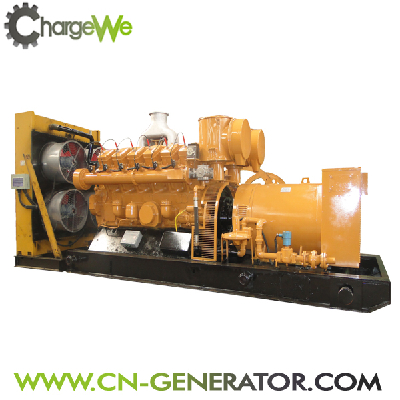

Biogas generator sets application
1.Breeding enterprise-biogas generator power
2.Industry- clcohol plant ,starch factory anaerobic sewage treatment
3.refuse landfill-sewage biogas generator power
Requirements for biogas genset
Within 1m from pressure valve of gas intake
1.Gas temperature≤40℃
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H2S≤200mg/Nm3
4.NH3≥20mg/Nm3
5.CH4 content≥40%,changing rate≤30mg/Nm3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm3
Model No. CW-400GFZ Engine No. 12V190DT-2 Gas mix type outside Rated power 400kw Continuous Power 320kw Rated voltage 400V/230V phase 3p4w Rated frequency 50Hz Rated rotation 1000r/min Rated power factor 0.8 Rated current 720A Frequency volatility rate ≤ 0.5 % Voltage regulating range 95-105 % Heat consumption ≤ 11.5mj/kw.h Lubricant consumption ≤ 1.5g/kw.h pressure 3-20kpa Cylinder number 12-V Cylinder diameter 190mm stroke 210mm Compression ratio 9:1 Starting mode 24V electric motor Overhaul time ≥ 25000h Noise ≤ 105dB(A) Intake mode Natural intake Sparking mode Spark plug Voltage regulation mode automatic Speed regulation mode electronic speed regulate Lubrication mode Pressure and splash Cooling mode Circulating water cooling Exhaust temperature ≤ 650 ℃ Displacement 71.45L Genset dimensions 6000 × 1970 × 2235
