- Size: 2300×850×1350mm
- Place of Origin: Jinan ,Shandong
- Brand Name: CHARGEWE
- Model Number: CW-40GFZ
- Weight: 1200.000 kg

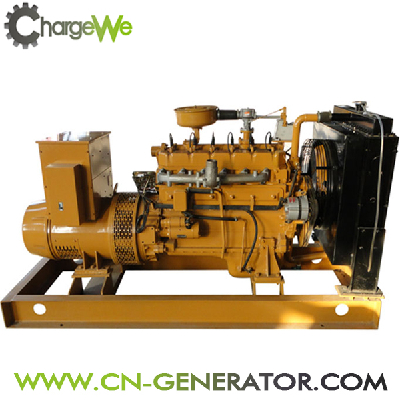

TECHNICAL PARAMETER OF 40KW BIOGAS GENERATOR
Model No. | CW -40GFZ |
Engine No. | CW610 5 |
Gas mix type | outside |
Rated power | 40kw |
Rated voltage | 400V/230V |
Phase | 3p4w |
Rated frequency | 50Hz |
Rated rotation | 1500r/min |
Rated power factor | 0.8 |
Rated current | 72A |
Heat consumption | ≤11.5mj/kw.h |
Gas pressure | 3-20kpa |
Cylinder number | 6 |
Cylinder diameter | 105mm |
Stroke | 125mm |
Compression ratio | 1 1 :1 |
Aspiration mode | Naturally aspirated |
Ignition method | plug ignition |
Voltage regulation mode | Automatic pressure regulation |
Speed regulation mode | Electronic speed regulation |
Lubrication mode | Pressure and splash lubrication |
Cooling mode | Closed/open cooling |
Starting mode | 24V electric motor |
Overhaul period | ≥2500 0h |
Noise | ≤105 |
Exhaust temperature | ≤650 ℃ |
Displacement | 5.2L |
Genset dimensions | 2300×850×1350 |
Genset weight | 1 2 00kg |
