- Size: 6000×1970×2735mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFJ
- Weight: 11500.000 kg

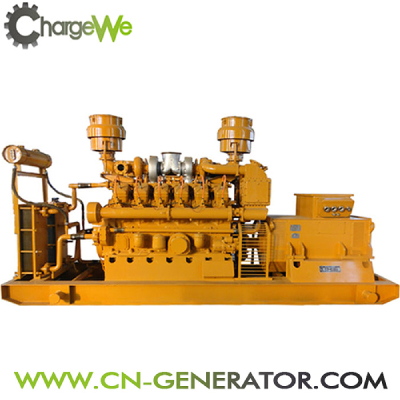

Biomass generator set
Gas component
Biomass exists in various of forms , like wood crop(straws of rice ,wheat ,bean ,cotton ,husk etc.) weeds ,algae etc ,in the plants ,others like animal wastes, spoil and the organic exist in waste water and rubbish etc.
Now , there are mainly three ways to generate power with biomass : gasify generating, burning generating ,CHP technology , in China we are rich in the resources of biomass , but lack in the power supply . So our country can supply a vast stage to show the advantage and economy to generate power with biomass .
Genset No. CW-500GFJ Engine No. 12V190ZLDT-2 Gas mix type outside Rated power 500kw Continuous power 400kw Rated voltage 400V/230V Phase 3phase4wire Rated frequency 50Hz Rated rotation 1000r/min Rated power factor 0.8 Rated current 902A Frequency steady state regulation rate ≤ 0.5 % Voltage regulating range 95-105 % Heat consumption ≤ 11.5mj/kw.h Lubricant consumption ≤ 1.5g/kw.h Gas pressure 3-20kpa Cylinder number 12v Cylinder diameter 190mm Stroke 210mm Compression ratio 8:1 Starting mode 24V electric motor Overhaul time ≥ 25000h Noise ≤ 105 Intake mode Supercharging,inter- cooled Sparking mode Sparking plug Voltage regulation mode automatic Speed regulation mode Electric speed regulate Lubrication mode Pressure and splash Cooling mode Closed/open cooled Exhaust temperature ≤ 650 ℃ Displacement 71.45L Size (mm)
