- Size: 6000×1970×2735
- Place of Origin: Jinan, Shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFZ
- Weight: 12000.000 kg
Biogas generator sets application
1.Breeding enterprise-biogas generator power
2.Industry- clcohol plant ,starch factory anaerobic sewage treatment
3.refuse landfill-sewage biogas generator power
Requirements for biogas genset
Within 1m from pressure valve of gas intake
1.Gas temperature≤40℃
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H2S≤200mg/Nm3
4.NH3≥20mg/Nm3
5.CH4 content≥40%,changing rate≤30mg/Nm3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm3

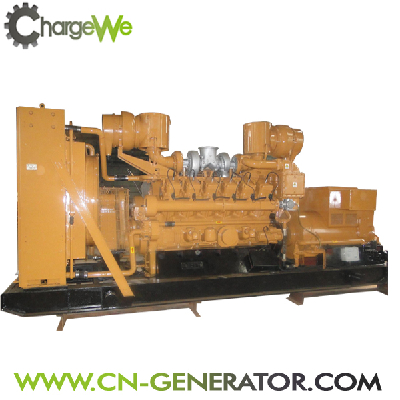

Model No. CW-500GFZ Engine No. 12V190ZLDT-2 Gas mix type outside Rated power 500kw Continuous Power 400kw Rated voltage 400V/230V phase 3p4w Rated frequency 50Hz Rated rotation 1000r/min Rated power factor 0.8 Rated current 902A Frequency volatility rate ≤ 0.5 % Voltage regulating range 95-105 % Heat consumption ≤ 11.5mj/kw.h Lubricant consumption ≤ 1.5g/kw.h pressure 3-20kpa Cylinder number 12-V Cylinder diameter 190mm stroke 210mm Compression ratio 8:1 Starting mode 24V electric motor Overhaul time ≥ 25000h Noise ≤ 105dB(A) Intake mode Supercharging, inter cooler Sparking mode Spark plug Voltage regulation mode automatic Speed regulation mode electronic speed regulate Lubrication mode Pressure and splash Cooling mode Circulating water cooling Exhaust temperature ≤ 650 ℃ Displacement 71.45L Genset dimensions 6000 × 1970 × 2735
