- Size: 6150*1820*2700mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-600GF
- Weight: 10200.000 kg

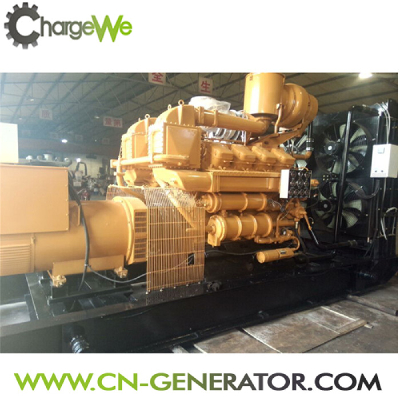

190series diesel generator set
190 series diesel generator set is a kind of high speed and powerful diesel engine with good quality and wide usage. With continuous improvement and adoption of the technology result of modern internal-combustion engine, this engine possesses characters of advanced technique 、 economical data 、 compact in structure 、 speedy start 、 easy to operate 、 co nvenient maintenance and suitable to work in harsh environment etc.
Genset mode | CW-600GF |
Engine No. | 8V190ZL |
Rated power | 600kw |
Continuous power | 480kw |
Rated voltage | 400v/230v |
Phase | 3phase4wire |
Rated frequency | 50Hz |
Rated rotation | 1500r/min |
Rated power factor | 0.8 |
Rated current | 1080A |
Cylinder number | 8 in-line |
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 14:1 |
Oil consumption (Full load) | ≤ 209.4g |
Lubricant oil consumption (g/kw.h) | ≤ 1.6g |
Starting mode | 24V electric motor |
Control mode | Long-distance control /manual control |
Intake mode | Direct injection ,turbine charger |
Lubricating mode | Pressure and splashing lubricating |
Discharge temperature (before turbine) | ≤ 600 ℃ |
Temperature of Outlet water | ≤ 85 ℃ |
Oil temperature (in the oil pan) | ≤ 90 ℃ |
Oil pressure of Man oil Gellery | 392-784kpa |
Displacement | 47.6L |
Genset size | 6150*1820*2700mm |
Weight | 10200kg |
