- Size: 4000×1200×1750mm
- Place of Origin: Jinan ,Shandong
- Brand Name: CHARGEWE
- Model Number: CW-80GFZ
- Weight: 2300.000 kg

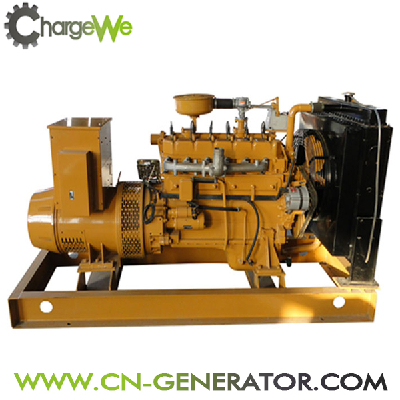

Biogas generator sets application
1.Breeding enterprise-biogas generator power
2.Industry- clcohol plant ,starch factory anaerobic sewage treatment
3.refuse landfill-sewage biogas generator power
Requirements for biogas genset
Within 1m from pressure valve of gas intake
1.Gas temperature≤40 ℃
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H 2 S≤200mg/Nm 3
4.NH 3 ≥20mg/Nm 3
5.CH 4 content≥40%,changing rate≤30mg/Nm 3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm 3
Model No. | CW -80GFZ |
Engine No. | CW 6135 |
Gas mix type | outside |
Rated power | 80kw |
Rated voltage | 400V/230V |
Phase | 3p4w |
Rated frequency | 50Hz |
Rated rotation | 1500r/min |
Rated power factor | 0.8 |
Rated current | 144A |
Heat consumption | ≤11.5mj/kw.h |
Gas pressure | 3-20kpa |
Cylinder number | 6 |
Cylinder diameter | 135mm |
Stroke | 150mm |
Compression ratio | 10:1 |
Aspiration mode | Naturally aspirated |
Ignition method | plug ignition |
Voltage regulation mode | Automatic pressure regulation |
Speed regulation mode | Electronic speed regulation |
Lubrication mode | Pressure and splash lubrication |
Cooling mode | Closed/open cooling |
Starting mode | 24V electric motor |
Overhaul period | ≥ 25000h |
Noise | ≤105 |
Exhaust temperature | ≤650 ℃ |
Displacement | 10.4L |
Genset dimensions | 4000×1200×1750 |
Genset weight | 2300kg |
