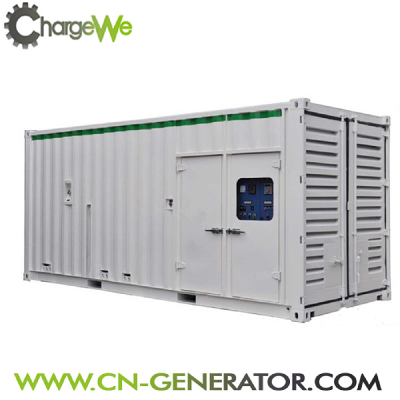

- Size: 6000*1970*2735mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-600GFJ
- Weight: 11500.000 kg
Requirement for biomass gas
Within 1m to the intake valve of gas generator set
1. Generator temperature≤40 ℃
2.Pressure 3-10kpa ,pressure changing rate ≤ 1kpa/min
3.H 2 S ≤ 200mg/Nm 3
4.NH 3 ≤ 20 mg/Nm 3
5.Tar content ≤ 20 mg/Nm 3
6.Impurity particle size ≤ 5um .impurity content ≤ 30 mg/Nm 3
7.Moisture content ≤ 40 g/Nm 3
8.Heat value ≥ 4.2mj/Nm3
Noted : If there are too much sulfur and ammonia in the gas ,it will not only corrode the
electrode of sparking plug heavily but also increase the acid value of engine oil which
will corrode the parts inside of genset ,easy to generate precipitate and increase the
attrition corrosion to the engine.

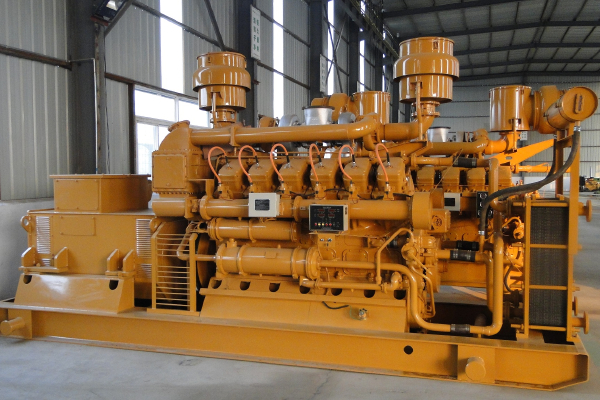

Genset No. | CW-600GFJ |
Engine No. | 12V190ZLT |
Gas mix type | outside |
Rated power | 600kw |
Continuous power | 500kw |
Rated voltage | 400V/230V |
Phase | 3phase4wire |
Rated frequency | 50Hz |
Rated rotation | 1000r/min |
Rated power factor | 0.8 |
Rated current | 1020A |
Frequency steady state regulation rate | ≤ 0.5 % |
Voltage regulating range | 95-105 % |
Heat consumption | ≤ 11.5mj/kw.h |
Lubricant consumption | ≤ 1.5g/kw.h |
Gas pressure | 3-20kpa |
Cylinder number | 12v |
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 8:1 |
Starting mode | 24V electric motor |
Overhaul time | ≥ 25000h |
Noise | ≤ 105 |
Intake mode | Supercharging,inter- cooled |
Sparking mode | Sparking plug |
Voltage regulation mode | automatic |
Speed regulation mode | Electric speed regulate |
Lubrication mode | Pressure and splash |
Cooling mode | Closed/open cooled |
Exhaust temperature | ≤ 650 ℃ |
Displacement | 71.45L |
Size (mm) | 6000*1970*2735 |
