- Size: 6000×1970×2700mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-400GFT
- Weight: 11500.000 kg

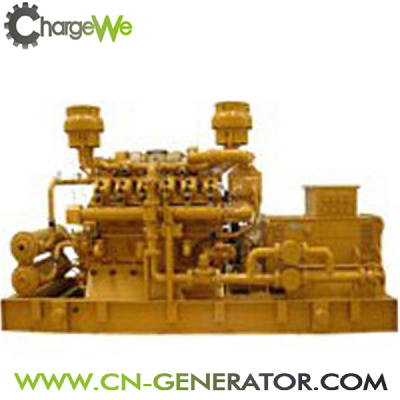

Nature gas generator set
Nature gas --- Its main component is HC 4, which takes 90% of the whole content .The displacement. The displacement of NO x , CH m and Co from burning are much lower than the state standards and without dust pollution; thermal efficiency of conversion is 65%, which is same to the LPG and high than coal ; calculated on the same calorific value ,the price of nature gas is lower than the price of coal and petroleum. Nature gas is used by civil use, generation, industrial chemicals and industrial fuel etc. It ’ s a good substitute of coal and petroleum. It can instead of civil coal gas, it can be used as nitrogenous fertilizer instead of coal and petroleum; it can be used as ethylene instead of Naphtha; It can be used as the car engine fuel instead of petroleum.
Requirements for Nature gas
With in 1m from pressure regulating valve of gas intake .
1. The ratio of CH 4 in nature gas ≥ 70%
2. Pressure of nature gas :80~200kpa ,rate of pressure change ≤ 1kpa/min .
3. H 2 S ≤ 20mg/Nm 3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5um ,impurity content ≤ 30mg/Nm ³
Genset No. CW-400GFT Engine No. 12V190DT-2 Type outside Rated power 400kw Prime power 320kw Rated voltage 400V/230V Phase 3P4W Rated frequency 50Hz Rated speed 1000r/min Rated power factor 0.8 Rated current 720A Frequency volatility rate ≤ 0.5 % Voltage regulation range 95-105 % Heat consumption ≤ 11.5mj/kw.h Lubricant consumption ≤ 1.5g/kw.h Gas Pressure 80-200kpa Cylinder No. 12-V Cylinder diameter 190mm Stroke 210mm Compression ratio 9:1 Start mode 24V electric motor Overhaul ≥ 25000h Noise ≤ 105dB(A) Intake mode Natural intake Sparking mode Spark plug Voltage regulation mode automatic Speed regulation mode Electronic speed regulation Lubrication mode Pressure and splash Cooled mode Circulating water cooled Exhaust temperature ≤ 650 ℃ Displacement 71.45L Size 6000 × 1970 × 2235
- Size: 6000×1970×2700mm
- Place of Origin: Jinan shandong
- Brand Name: CHARGEWE
- Model Number: CW-400GFT
- Weight: 11500.000 kg
