- Size: 6000×1970×2735 mm
- Place of Origin: Jinan ,Shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFZ
- Weight: 12000.000 kg
Requirments for Biogas Genset
1.within 1m from pressure regulating
valve of gas intake.
2.Gas temperature≤40°C
3.Pressure 3-20kpa,pressure changing
rate≤1kpa/min
4. H2S≤200mg/Nm³
5. NH3≤20mg/Nm³
6. CH4 content not less than 40%,
changing rate not more than2%.
7.Moisture content≤40g/N m³
8.Impurity particle size≤5μm,
impurity content≤30g/N m

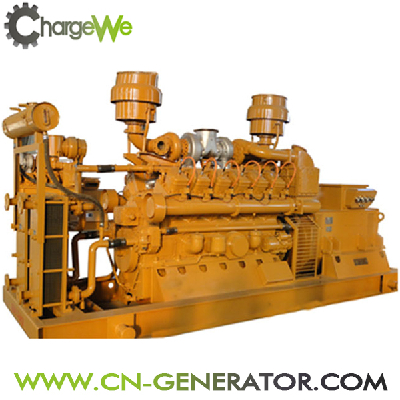

Technical parameter of 500kw biogas gen erator
Model No. CW-500GFZ Engine No. 12V190ZLDT-2 Gas mix type outside Rated power 500kw Continuous Power 400kw Rated voltage 400V/230V phase 3p4w Rated frequency 50Hz Rated rotation 1000r/min Rated power factor 0.8 Rated current 902A Frequency volatility rate ≤ 0.5 % Voltage regulating range 95-105 % Heat consumption ≤ 11.5mj/kw.h Lubricant consumption ≤ 1.5g/kw.h pressure 3-20kpa Cylinder number 12-V Cylinder diameter 190mm stroke 210mm Compression ratio 8:1 Starting mode 24V electric motor Overhaul time ≥ 25000h
- Size: 6000×1970×2735 mm
- Place of Origin: Jinan ,Shandong
- Brand Name: CHARGEWE
- Model Number: CW-500GFZ
- Weight: 12000.000 kg
