Requirements for coal gas genset
1.thin 1m from gas intake valve
2.Coal gas temperature ≤40℃;
3.Pressure of coal producer gas: 3-10kpa, rate of pressure change≤1kpa/min;
4.H2S≤200mg/Nm3;
5.NH3≤20mg/Nm3;
6.Tar content≤50mg/Nm³
7.Impurity particle size≤5μm ,Impurity content≤30mg/Nm³;
8.Moisture content≤40g/Nm3;
9.Gas heat value≥4.2 MJ/Nm³
10.If fuel gas contains higher quantity of sulfur and ammonia, it not only corrodes the pole of spark plug seriously, but also increases the acid value, which corrodes internal parts of genset and corrodes the genset with precipitates.

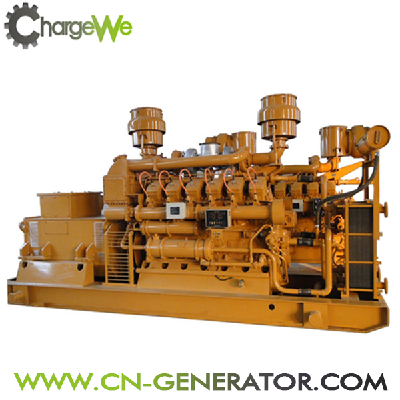

Technical parameter of 400kw coal gas generator
Genset mode CW-400GFL Engine No. 12V190DT-2 Gas mix type outside Rated power 400kw Continuous power 320kw Rated voltage 400v/230v Phase 3phase4wire Rated frequency 50Hz Rated rotation 1000r/min Rated power factor 0.8 Rated current 720A Frequency transient regulating rate ≤ 0.5 ％ Voltage regulating range 95-105 ％ Heat consumption ≤ 11.5mj/kw.h Lubricant oil consumption ≤ 1.5g/kw.h Gas pressure 80-200kpa Cylinder number 12-V Cylinder diameter 190mm Stroke 210mm Compression ratio 9:1 Starting mode 24V electric motor Overhaul time ≥ 25000h Noise ≤ 105
